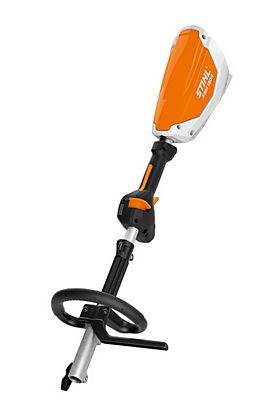

A powerful cordless KombiEngine with high torque and low weight. At only 3.2kg this is the lightest KombiEngine in the range. It is ideal for work in noise sensitive areas and prolonged use due to the low vibration levels. The KMA 130 R comes supplied with a shoulder harness for support during use. It is to be used in conjunction with AP batteries connected via the battery belt or carrying system with connecting cable, or an AR backpack battery to maintain machine balance. See accessories for more information.
TOOL ONLY
Technical data
| Sound power level dB(A) 1) | 104 |
| Rated voltage V | 36 |
| Sound pressure level dB(A) 1) | 92 |
| Vibration level left/right m/s² 2) | 5.8/5.2 |
| Blowing force with BG-KM N | 15 |
| Air speed with BG-KM m/s 3) | 57.4 |
| Throughput with BG-KM m³/h 3) | 815 |
| Max. air speed with BG-KM m/s | 68.6 |
| Max. throughput with BG-KM m³/h 3) | 1.110 |
| Length to coupling sleeve cm | 92 |
| Weight kg 4) | 3.2 |
| Working minutes per battery charge with FS-KM, AC and AP 100 min 5) | 13/8/6 |
| Working minutes per battery charge with FS-KM, AC and AP 200 min 5) | 26/15/12 |
| Working minutes per battery charge with FS-KM, AC and AP 300 min 5) | 38/23/18 |
| Working minutes per battery charge with FS-KM, AC and AR 1000 min 5) | 100/63/50 |
| Working minutes per battery charge with FS-KM, AC and AR 2000 min 5) | 150/92/75 |
| Working minutes per battery charge with FS-KM, AC and AR 3000 min 5) | 190/115/90 |
| Working minutes per battery charge with MB-KM and AP 100 min 5) | 24/16/13 |
| Working minutes per battery charge with MB-KM, and AP 200 min 5) | 50/32/25 |
| Working minutes per battery charge with MB-KM, and AP 300 min 5) | 75/45/40 |
| Working minutes per battery charge with MB-KM, and AR 1000 min 5) | 200/130/100 |
| Working minutes per battery charge with MB-KM and AR 2000 min 5) | 300/190/15 |
| Working minutes per battery charge with MB-KM, and AR 3000 min 5) | 370/240/190 |
| Working minutes per battery charge with FCB-KM and AP 100 min 5) | 11/9/6 |
| Working minutes per battery charge with FCB-KM and AP 200 min 5) | 22/17/11 |
| Working minutes per battery charge with FCB-KM and AP 300 min 5) | 32/25/17 |
| Working minutes per battery charge with FCB-KM and AR 1000 min 5) | 90/70/45 |
| Working minutes per battery charge with FCB-KM and AR 2000 min 5) | 130/100/70 |
| Working minutes per battery charge with FCB-KM and AR 3000 min 5) | 160/130/85 |
| Working minutes per battery charge with KW-KM and AP 100 min 5) | 15/13/12 |
| Working minutes per battery charge with KW-KM and AP 200 min 5) | 30/25/23 |
| Working minutes per battery charge with KW-KM and AP 300 min 5) | 45/40/35 |
| Working minutes per battery charge with KW-KM and AR 1000 min 5) | 125/110/90 |
| Working minutes per battery charge with KW-KM and AR 2000 min 5) | 180/155/140 |
| Working minutes per battery charge with KW-KM and AR 3000 min 5) | 230/190/180 |
| Working minutes per battery charge with BF-KM and AP 100 min 5) | 15/13/12 |
| Working minutes per battery charge with BF-KM and AP 200 min 5) | 30/25/23 |
| Working minutes per battery charge with BF-KM and AP 300 min 5) | 45/40/35 |
| Working minutes per battery charge with BF-KM and AR 2000 min 5) | 180/155/140 |
| Working minutes per battery charge with BF-KM and AR 1000 min 5) | 125/110/90 |
| Working minutes per battery charge with BF-KM and AR 3000 min 5) | 230/190/180 |
| Working minutes per battery charge with KB-KM and AP 100 min 5) | 15/13/12 |
| Working minutes per battery charge with KB-KM and AP 200 min 5) | 30/25/23 |
| Working minutes per battery charge with KB-KM and AP 300 min 5) | 45/40/35 |
| Working minutes per battery charge with KB-KM and AR 1000 min 5) | 125/110/90 |
| Working minutes per battery charge with KB-KM and AR 2000 min 5) | 180/155/140 |
| Working minutes per battery charge with KB-KM and AR 3000 min 5) | 230/190/180 |
| Working minutes per battery charge with BG-KM and AP 100 min 5) | 13/7/5 |
| Working hours per battery charge witht BG-KM and AP 200 min 5) | 25/14/10 |
| Working minutes per battery charge with BG-KM and AP 300 min 5) | 35/20/13 |
| Working minutes per battery charge with BG-KM and AR 1000 min 5) | 100/60/40 |
| Working minutes per battery charge with BG-KM and AR 2000 min 5) | 150/85/60 |
| Working minutes per battery charge with BG-KM and AR 3000 min 5) | 190/110/70 |
| Working minutes per battery charge with HT-KM and AP 100 min 5) | 20/15/9 |
| Working minutes per battery charge with HT-KM and AP 200 min 5) | 40/30/18 |
| Working minutes per battery charge with HT-KM and AP 300 min 5) | 60/45/30 |
| Working minutes per battery charge with HT-KM and AR 1000 min 5) | 170/125/75 |
| Working minutes per battery charge with HT-KM and AR 2000 min 5) | 250/180/110 |
| Working minutes per battery charge with HT-KM and AR 3000 min 5) | 310/230/140 |
| Working minutes per battery charge with HL-KM 0° and AP 100 min 5) | 60/50/40 |
| Working minutes per battery charge with HL-KM 0° and AP 200 min 5) | 120/95/80 |
| Working minutes per battery charge with HL-KM 0° and AP 300 mn 5) | 180/145/120 |
| Working minutes per battery charge with HL-KM 0° and AR 1000 min 5) | 500/400/330 |
| Working minutes per battery charge with HL-KM 0° and AR 2000 min 5) | 730/580/480 |
| Working minutes per battery charge with HL-KM 0° and AR 3000 min 5) | 900/730/600 |
| Working minutes per battery charge with FH-KM 145° and AP 100 min 5) | 60/50/40 |
| Working minutes per battery charge with FH-KM 145° and AP 200 min 5) | 120/95/80 |
| Working minutes per battery charge with FH-KM 145° and AP 300 min 5) | 180/145/120 |
| Working minutes per battery charge with FH-KM 145° and AR 1000 min 5) | 500/400/330 |
| Working minutes per battery charge with FH-KM 145° and AR 2000 min 5) | 730/580/480 |
| Working minutes per battery charge with FH-KM 145° and AR 3000 min 5) | 900/730/600 |
| Working minutes per battery charge with HL-KM 145° and AP 100 min 5) | 60/50/40 |
| Working minutes per battery charge with HL-KM 145° and AP 200 min 5) | 120/95/80 |
| Working minutes per battery charge with HL-KM 145° and AP 300 min 5) | 180/145/120 |
| Working minutes per battery charge with HL-KM 145° and AR 1000 min 5) | 500/400/330 |
| Working minutes per battery charge with HL-KM 145° and AR 2000 min 5) | 730/580/480 |
| Working minutes per battery charge with HL-KM 145° and AR 3000 min 5) | 900/730/600 |
| Working minutes per battery charge with FCS-KM and AP 100 min 5) | 11/9/6 |
| Working minutes per battery charge with FCS-KM and AP 200 min 5) | 22/17/11 |
| Working minutes per battery charge with FCS-KM and AP 300 min | 32/25/17 |
| Working minutes per battery charge with FCS-KM and AR 1000 min 5) | 90/70/45 |
| Working minutes per battery charge with FCS-KM and AR 2000 min 5) | 130/100/70 |
| Working minutes per battery charge with FCS-KM and AR 3000 min 5) | 160/130/85 |
